Motorsports LLC.



Billet Quick release steering hub for IDIDIT and Flaming River steering columns.

Simple bolt on installation. No welding!

21 tooth 30 degree 2.1 inch Dia. gear ground involute spine hub. No play!

Provision for horn button push rod. (Horn still works!)

Available with 2.75 bolt circle 5 bolt or 6 bolt steering wheel mount face to fit Momo, Flaming River, Grant, and many other aftermarket wheels. Also available undrilled to allow you to custom fit to your wheel. Fits Chevy style columns.

Click any picture below for a enlarged view. (Will open in a new window.)

Polished Black Hard Anodized standard. Available non-anodized outer for custom color application by buyer.

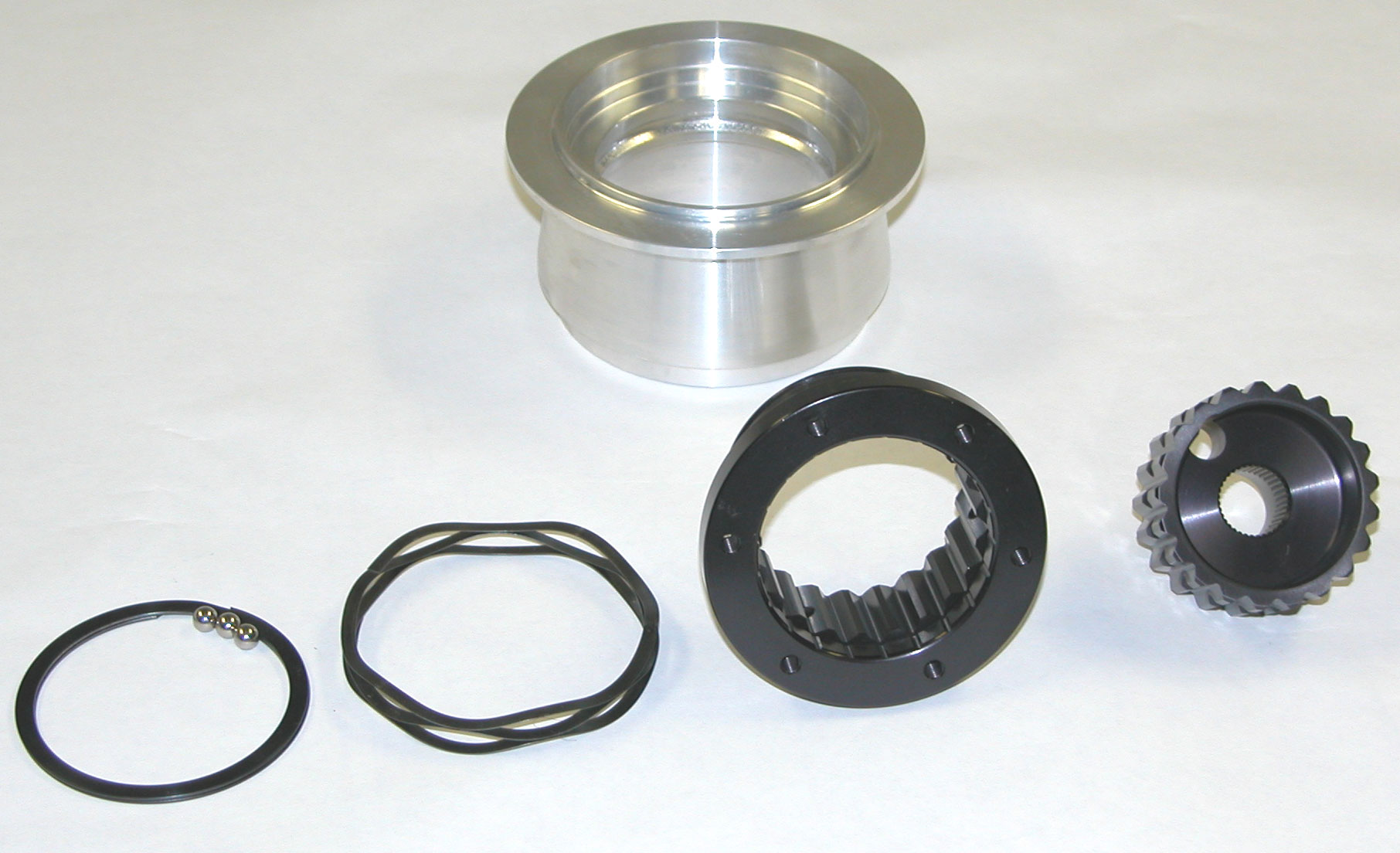

The photo on the right shows the disassembled components of the Quick release mount. The unit uses a ball lock mechanism to secure the mount to the hub.

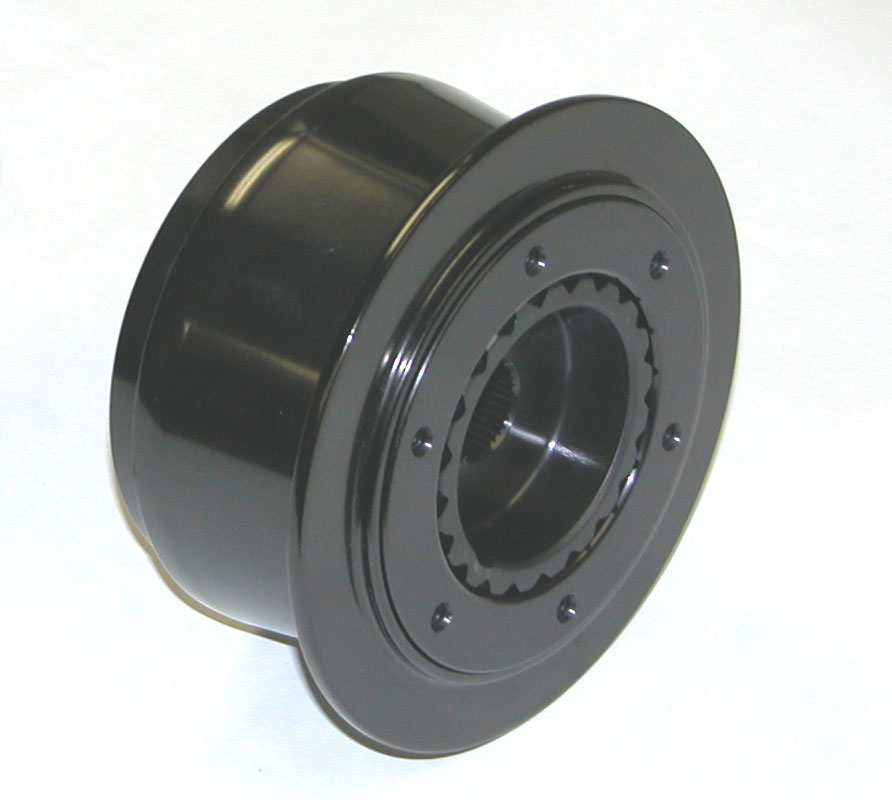

(The quick release unit comes fully assembled as pictured on the left.)

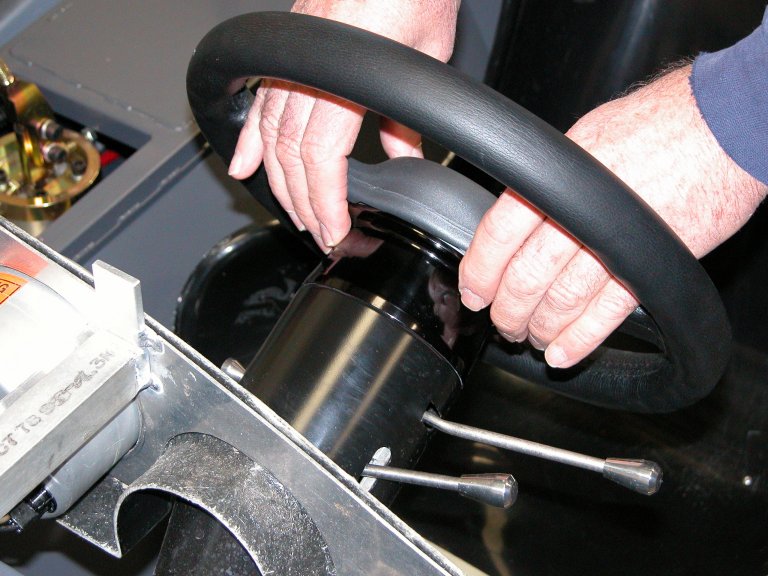

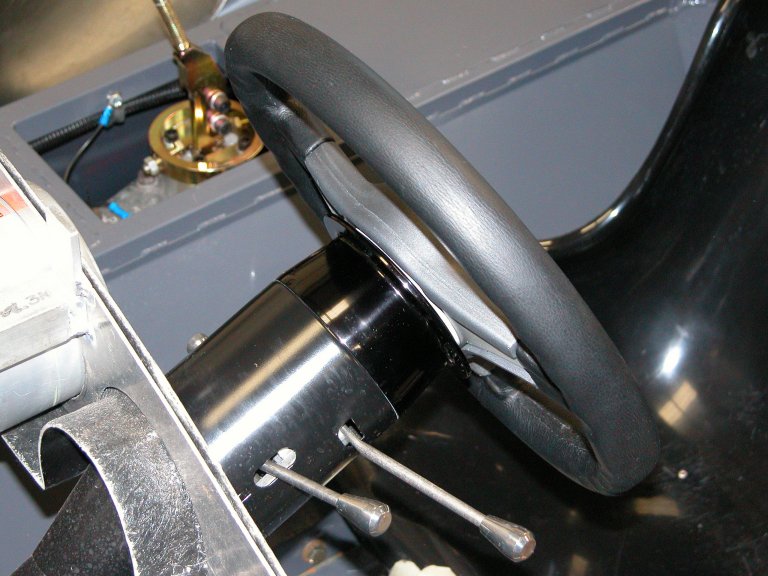

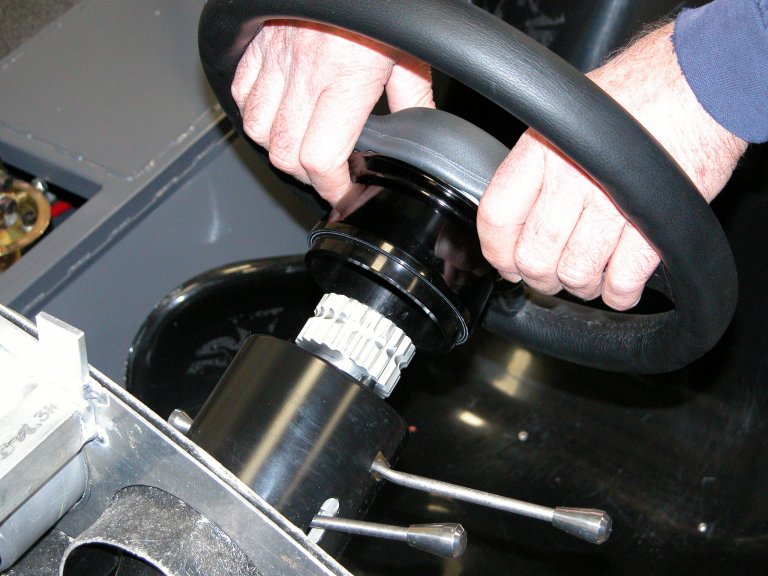

Operation is quite simple. Just pull up on the flange behind steering wheel and pull toward you. The hub and mount stays with the wheel.

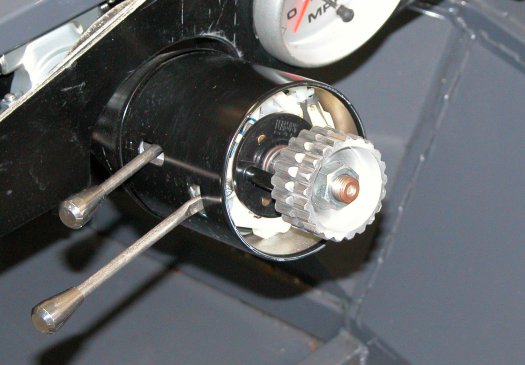

Re-installation of the steering wheel and hub is just the reverse. Put onto splines and push on. The balls will lock the unit into place.

Please scroll down to select application that fits your column and steering wheel.

6 bolt mount unit. Black polished, hard anodized. 6 X 2.75 wheel mount.
Flaming River column.

Part #JWQRFR16-B

Check your steering wheel manufacturer mount specs.

Price. 225.00 includes ground shipping Continental USA.

6 bolt mount unit. Black polished, hard anodized. 6 X 2.75 wheel mount.
IDIDIT column.

Part #JWQRID16-B

Check your steering wheel manufacturer mount specs.

Price. 225.00 includes ground shipping Continental USA.

5 bolt mount unit. Black polished, hard anodized. 5 X 2.75 wheel mount.
Flaming River column.

Part #JWQRFR15-B

Check your steering wheel manufacturer mount specs.

 Price. 225.00 includes ground shipping Continental USA.


5 bolt mount unit. Black polished, hard anodized. 5 X 2.75 wheel mount.
IDIDIT column.

Part #JWQRID15-B

Check your steering wheel manufacturer mount specs.

 Price. 225.00 includes ground shipping Continental USA.


6 bolt mount unit. Polished, non-anodized. 6 X 2.75 wheel mount.
Flaming River column.

Part #JWQRFR16-N

Check your steering wheel manufacturer mount specs.

 Price. 195.00 includes ground shipping Continental USA.


5 bolt mount unit. Polished, non-anodized. 5 X 2.75 wheel mount.
Flaming River column.

Part #JWQRFR15-N

Check your steering wheel manufacturer mount specs.

 Price. 195.00 includes ground shipping Continental USA.


6 bolt mount unit. Polished, non-anodized. 6 X 2.75 wheel mount.
IDIDIT column.

Part #JWQRID16-N

Check your steering wheel manufacturer mount specs.

 Price. 195.00 includes ground shipping Continental USA.


5 bolt mount unit. Polished, non-anodized. 5X 2.75 wheel mount.
IDIDIT column.

Part #JWQRID15-N

Check your steering wheel manufacturer mount specs.

 Price. 195.00 includes ground shipping Continental USA.




For information and technical details, please call 760-723-7482 or email Engineering
